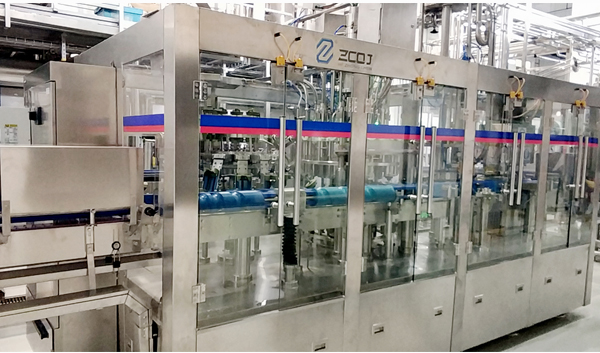

YLGD1503/YLGD2004 Can Beer Filling and Sealing Machine

? YLGD1503 has a production capacity of 6,000 CPH (330ml), while YLGD2004 has a production capacity of 10,000 CPH (330ml).

? 15 (20) electronic filling valves (BALLUF electronic graduated cylinders or E+H flowmeters) and 3 (4) head capping machines are used to form the filling system, with filling accuracy controlled within ±1 ml;

? Empty can CO2 displacement, equal pressure filling, filling parameters can be adjusted online, product categories can be switched with one click;

? Modular design, no dislodging chain design, simple installation, just connect the energy, water, electricity, and conveyance channels, and make some minor equipment adjustments to enter the production state.

? Overall stainless steel cleaning table, all contact parts with materials are designed in hygienic stainless steel, the upper part of the equipment can be washed with water to meet hygiene requirements;

? Small scale, low output, designed for craft beer and other personalized products;

? Design of groundwater-free production process;

? Configuring CIP cleaning tanks and automatic CIP cleaning;

Optional FFU clean unit can be used for sterile filling.

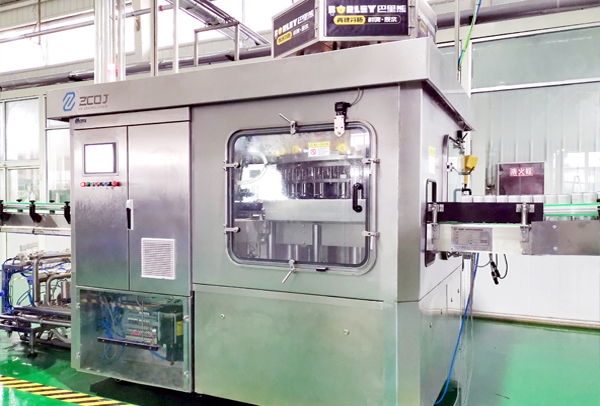

BG2000 Can/Glass Bottle Beer Rinser, Filler and Capper with Roll Closure

? The world's leading and domestically pioneering modular design, which can be used for the production of both cans and glass bottles;

? Rated output: 2,000 bottles (cans)/hour;

? The combined machine occupies a very small floor space and consists of 12 bottle (can) washing machines, 9 filling machines, 1 capping machine, and 1 sealing machine.

? Bottle washing and can washing integrated;

? Glass bottles and cans are integrated for filling, with an electronic valve (electronic measuring cylinder or flowmeter) for filling and a touch screen for conveniently adjusting individual filling valves;

? The capping machine can be equipped with a pull ring capping machine or an aluminum screw capping machine;

? Fully automatic single-head sealing machine, reliable performance;

? Centralized skid-mounted design, customers can access beer, CO2, compressed air, and water mediums to produce;

? Advanced automation control system, fully automatic production process, only 1 person is needed to operate, or even unmanned operation;

? A well-designed hygiene and cleaning system for equipment.
